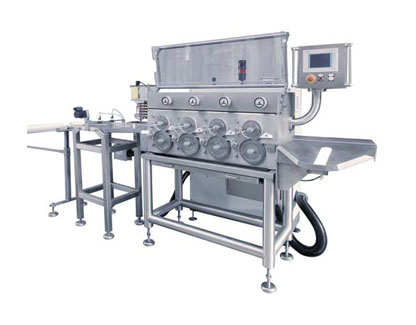

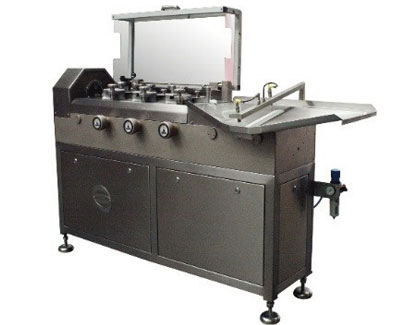

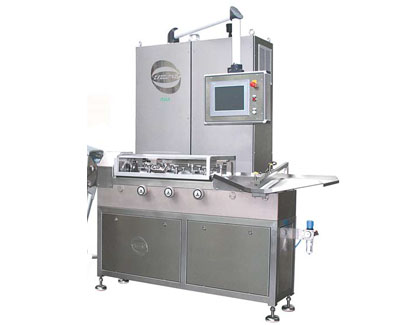

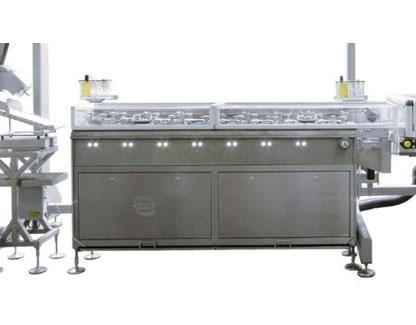

ROPE SIZERS

The rope sizer is designed to receive a thick candy/toffee/gum rope from either an extruder or a batch roller and to size it down to the desired rope section. This process is achieved by running the rope through a smooth sequence of different calibrating rollers that provides its controlled sizing.

A wide range of rope sizers featuring a stainless steel food grade design for hygiene and long-lasting operations. Rope sizers are available for all kind of need, from Lab use to high production requirements. Rope sizers are controlled by PLC for parameters and operation control and include servo drives.

APPLICATION Hard candies (solid and filled)
Toffees and chewy candy (solid and filled)
Lollipops (solid and filled) and gum (solid and filled)

MAIN FEATURES Food grade stainless steel made-design
Easy maintenance and cleaning
Horizontal or vertical design
Automatic rope control and synchronization
Anti-stick feature on calibrators
Hardware Safety protection onto each calibrator set
Rope cross-section adjustment
2 to 8 stages, mechanical or servo driven for added flexibility

Hard /Chewy/Toffee Candies Cluster calibrating group for easy rope feeding
Electrical heating system and temperature control

Gum and Chewy Cooling system for gum handling
Lubrication groups for very-sticky product handling

Chewy/Toffees Servo-driven swinging arm to properly feed the chewy/toffee rope onto the relaxing belt with speed controlled anti-stick belt

TECHNICAL DATA
