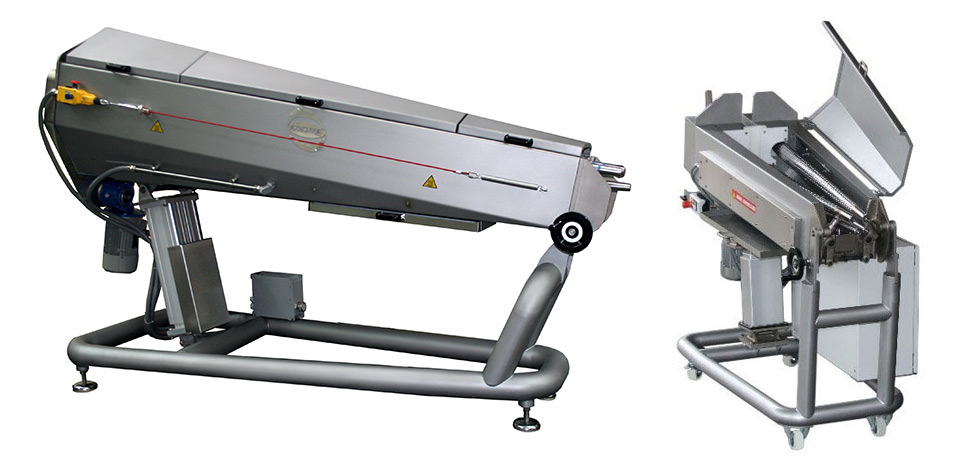

BATCH ROLLERS

Batch rollers are designed to receive the sugar mass from the upstream process, either in batch or in continuous, shaping it into a cone by means of an alternating and programmable rolling action. This ensures a perfect homogeneous texture and, by keeping a suitable temperature, grants its plasticity. Sugar mass gradually funnels, in the final section, into a rope that can properly feed a rope sizer.

All batch rollers incorporate a stainless steel food grade design for hygiene and long lasting operations. Batch rollers are available depending on their capacity in several models for all kind of need, from Lab use to high production requirements. Batch rollers are controlled by PLC for parameter and operation control.

APPLICATION Hard candies (solid and filled)
Toffees and chewy candy (solid and filled)
Lollipops

TECHNICAL FEATURES Food grade stainless steel made-design
Easy maintenance and cleaning
Powered conical rollers with programmable alternating rotation
Flow and loading control with powered lifting and lowering feature
Exit rope size adjustment
Electrical heating and temperature adjustment

OPTIONAL 2 temperature-controlled areas
Machine on casters
Pharma standards

TECHNICAL DATA
